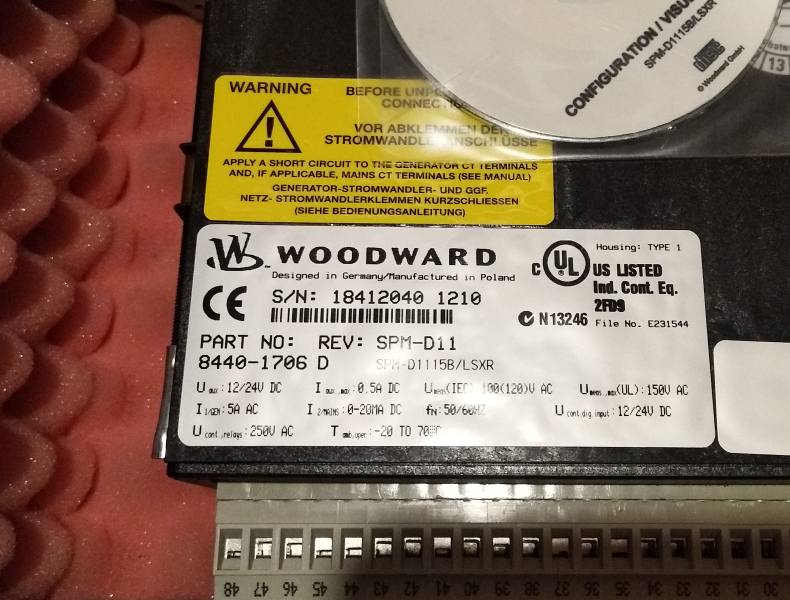

8440-1706 Woodward SPM-D11/LSXR
Product Details:
| Brand Name |
Woodward |
| Model |
8440-1706 |
| Condition |
New |
| Gross Weight/Shipping Weight |
2.2 lbs / 35.2 oz / 1kg |
| Packing Size |
6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm) |
| Country of Origin/Original Country |
United States (USA) |
| Lead Time |
In Stock |
| Shipping Port |
Xiamen |
| Payment |
T/T |
| Sales Price |
Inquiry |
| Color |
Depend on product |
| Warranty |
12 months |
| Lead time |
5-8 work days |
| Courier partners |
DHL, UPS, TNT, FedEx and EMS |
Additional Information:
Description:
Woodward's easYgen-3500 Series paralleling genset controllers provide exceptional versatility and value for OEM switchgear builders, generator packagers, and system integrators. The easYgen-3500 combines complete engine-generator control and protection with advanced, peer-to-peer paralleling functionality and innovative features in a robust, attractive and user-friendly package. Its integrated LogicsManager™ programmable logic functionality provides outstanding application flexibility and can often eliminate the need for additional PLC control, yet can easily integrate with SCADA or PLC-based control systems where desired.
The easYgen-3500 gives you the advantage of standardizing on a single, affordable genset controller for many different distributed power generation applications--from stand-alone emergency backup power to parallel load sharing of up to 32 gensets in complex, segmented distribution systems with multiple utility feeds and tie breakers.
Common easYgen-35400 applications:
Emergency standby: data centers, hospitals, commercial and industrial facilities
Distributed Generation (DG): utility-dispatchable power for peak demand response
Islanded prime-power: oil & gas exploration, marine, remote villages, rental/mobile
Microgrid: military, government, net-zero communities, universities
Utility paralleling: peak shaving, demand curtailment
Cogeneration (CHP): wastewater treatment, biogas production/containment
Switchgear upgrades: generator control retrofit to add load sharing/paralleling capability
easYgen-3500 Features & Benefits
All easYgen-3500 Series models include these standard features:
True RMS voltage and current sensing (gen, bus and mains) for reduced susceptibility to harmonics
CAN network communication/control to engine ECU (standard SAE-J1939 protocol and several proprietary engine OEM protocols are supported)
Serial Modbus RTU (slave) communication for SCADA annunciation and external control
Configuration via PC/laptop with Woodward ToolKit service tool
Connectivity with the RP-3500 Remote Panel for complete annunciation, control and configuration of the easYgen-3500 controller, over CANopen protocol at up to 250m distance
Compliance agency/marine* approvals: CE, UL/cUL, CSA, BDEW, ABS, Lloyd's Register
(* see marine package for further approvals)
The easYgen-3400 Series provide:
AMF (automatic mains failure) detection, decoupling and emergency run with dead bus close
Automatic synchronization: phase-match, positive/negative slip-frequency, run-up (dead field) paralleling
Circuit breaker close/open control: GCB only, GCB and MCB (ATS function), or external (no) control
Proportional load sharing (isochronous or droop) of up to 32 gensets, regardless of individual size
Base loading, import/export control, asymmetrical loading (through external base load input)
Automatic load dependent start/stop for improved generation system efficiency
Asynchronous (induction) generator control
Engine and generator protection functions, with fully programmable settings
