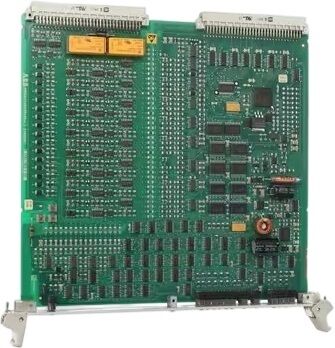

216DB61 HESG334063R100 ABB Binary I/P And Tripping Unit Board

216DB61 HESG334063R100 ABB Binary I/P And Tripping Unit Board

  • 216DB61 HESG334063R100 ABB Binary I/P And Tripping Unit Board
216DB61 HESG334063R100 ABB Binary I/P And Tripping Unit Board
Thông tin chi tiết sản phẩm:
Nguồn gốc: Thụy Điển
Hàng hiệu: ABB
Chứng nhận: COC
Số mô hình: 216DB61
Thanh toán:
Số lượng đặt hàng tối thiểu: 1 mảnh
Giá bán: 3000
chi tiết đóng gói: Nguyên bản
Thời gian giao hàng: 5-8 NGÀY LÀM VIỆC
Điều khoản thanh toán: T/T
Khả năng cung cấp: 10 mảnh mỗi ngày
Tiếp xúc
Chi tiết sản phẩm
Tên: 216DB61 HESG334063R100 Người mẫu: 216DB61
Bưu kiện: Tiêu chuẩn Bảo hành: 12 tháng
tổng trọng lượng: 2,2 lbs / 35,2 oz / 1kg kích thước đóng gói: 7 "x 7" x 4 "(18 cm x 18 cm x 10 cm)
thời gian dẫn: 1 ~ 3 ngày Chất lượng: Thương hiệu 100%
Cổ phần: Có sẵn
Làm nổi bật:

ABB Binary I/P board

,

ABB Tripping Unit Module

,

HESG334063R100 ABB Module

216DB61 HESG334063R100 ABB Binary I/P And Tripping Unit Board
Product Overview
The 216DB61 binary I/P and tripping unit is a specialized interface module featuring 16 input and 8 output channels. This critical component serves as the essential link between protection logic and tripping actions, ensuring reliable signal transfer within the protection system.
Technical Specifications
Brand Name ABB
Model 216VC62A
Product ID HESG324442R112/F
Catalog Procontrol
Origin SWEDEN
Dimension 16*16*12cm
Weight 0.5kg
HS Code 8537101190
Payment T/T
Sales Price $3000
Warranty 12 months
Lead Time 3-5 work days
Functional Description
  • 8 Output Channels: Dedicated to transferring tripping commands from activated protection functions directly to the 216GA62 tripping relay module
  • 16 Input Channels: Receive external binary signals from the 216GE61 I/P relay module and forward them via the system bus to the 216VC62a processing unit for logic evaluation
  • Dual Connector Design: Upper connector "a" for inputs CHI01...CHI16, and lower connector "b" for outputs CHO01...CHO08
  • Configurable Operation: Plug-in jumper BR1 on the PCB determines whether "ENABLE" and "BLOCK CH OUT" functions are active, controlling tripping output channel status
Note: The enabling/blocking function applies solely to the 216DB61 unit itself and does not affect other system components.
Reference Information
07NG20 GJR5221900R2
07EB61 GJV3074341R1
QHFT201 YL681001-AB
216DB61 HESG334063R100 ABB Binary I/P And Tripping Unit Board 0
