GE Mark VI Discrete Input/Output Terminal Board with 24 Channels and 16-145 V DC Wetting Voltage

GE Mark VI Discrete Input/Output Terminal Board with 24 Channels and 16-145 V DC Wetting Voltage

  • GE Mark VI Discrete Input/Output Terminal Board with 24 Channels and 16-145 V DC Wetting Voltage
  • GE Mark VI Discrete Input/Output Terminal Board with 24 Channels and 16-145 V DC Wetting Voltage
GE Mark VI Discrete Input/Output Terminal Board with 24 Channels and 16-145 V DC Wetting Voltage
Thông tin chi tiết sản phẩm:
Nguồn gốc: Hoa Kỳ
Hàng hiệu: GE
Chứng nhận: CO
Số mô hình: IS200TDBTH6A
Thanh toán:
Số lượng đặt hàng tối thiểu: 1 cái
Giá bán: $4000
chi tiết đóng gói: 6.4" x 6.4" x 4.8" (16cm x 16cm x 12cm)
Thời gian giao hàng: 5-8 ngày làm việc
Điều khoản thanh toán: T/T
Khả năng cung cấp: 10pcs
Tiếp xúc
Chi tiết sản phẩm
Hàng hiệu: GE Người mẫu: IS200TDBTH6A
Tình trạng: Mới Tổng Trọng Lượng/Trọng Lượng Vận Chuyển: 2,2 lbs / 35,2 oz / 1kg
Kích thước đóng gói: 6.4" x 6.4" x 4.8" (16cm x 16cm x 12cm) Nước xuất xứ/Nước gốc: Hoa Kỳ (USA)
Thời gian dẫn: Còn hàng Cổng vận chuyển: Xiamen
Sự chi trả: T/T Giá bán: CUỘC ĐIỀU TRA
Màu sắc: Phụ thuộc vào vật liệu Bảo hành: 12 tháng
Thời gian dẫn: 5-8 ngày làm việc đối tác chuyển phát nhanh: DHL, UPS, TNT, FedEx và EMS
Làm nổi bật:

24 Channels Terminal Board

,

16-145 V DC Wetting Voltage Terminal Board

,

Mark VI I/O Terminal Board

IS200TDBTH6A GE Mark VI Discrete Input/Output Terminal Board - 24 Channels
Product Specifications
Brand Name GE
Model IS200TDBTH6A
Catalog Mark VI
Origin United States (USA)
Dimension 16×16×12cm
Weight 1kg
HS Code 8537101190
Payment T/T
Sales Price $4000
Warranty 12 months
Lead time 3-5 work days
Additional Information
GEI-100165 GEDS Standard Message Format (GSM)
GFK-1396 CIMPLICITY HMI CimEdit Operation Manual
GEH-6408 Control System Toolbox for Configuring the Trend Recorder
Product Description

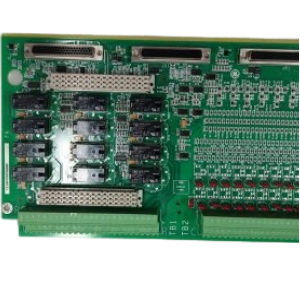

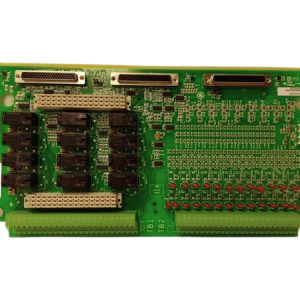

The GE IS200TDBTH6A is a Discrete Input/Output Terminal Board manufactured by General Electric as part of the Mark VIe Series for Distributed Control Systems. This flat or DIN-rail mounted TMR contact input/output terminal board features:
  • 24 group-isolated contact inputs with external wetting voltage support (24V, 48V, or 125V DC)
  • Built-in noise suppression for protection against surges and high-frequency noise
  • 12 form-C relay outputs for enhanced relay functionality
  • Option card compatibility for expanded capabilities
  • Onboard signal conditioning identical to STCI, scaled for 24V, 48V, and 125V DC wetting voltage
  • Input voltage ranges: 16-32V DC, 32-64V DC, and 100-145V DC respectively
  • Current-limited contact inputs (2.5mA for circuits 1-21, 10mA for circuits 22-24)
  • 0.5A current limitation on 24V DC supply using resettable polymer PTC fuses
The wetting voltage is set at half of the threshold voltage for optimal performance. The I/O pack includes detailed touch-sensing circuitry diagrams for precise configuration.
GE Mark VI Discrete Input/Output Terminal Board with 24 Channels and 16-145 V DC Wetting Voltage 0
